We currently produce a single taximeter that can cover any scenario envisaged within the current taximeter market. It is a year 2k compliant taximeter and can be programmed to be fully calendar controlled. As more and more governing bodies are moving towards calendar controlled tariffs, this is where we feel our unit comes to the fore.

The M12 has features to make the users life so much easier. It is capable of being programmed with a

maximum of 250 fully independent tariffs. A four mode display dimmer function allows the illumination of the screen to be manually adjusted to give maximum visibility, so the fare can be clearly seen even if the

meter is in direct sunlight. It can keep track of both daily and accumulated totals and even give a detailed printout of the last 250 jobs. A pending tariff change can be pre-loaded into the M12 and a date set for the tariff to come into force automatically, saving you valuable time and money. All these functions are geared towards helping you manage your business income more effectively.

Its overall size is only 187 x 58 x 35 mm, allowing it to be fitted conveniently into a vehicle and not intrude into the drivers environment. The meter can be installed as a standalone unit or with any of our other System 12 products.

Finally our M12 taximeter is fully P.C.O. and B.S.I approved and also meets the CENLEC requirements.

Truly a meter designed to see you through the next millennium.

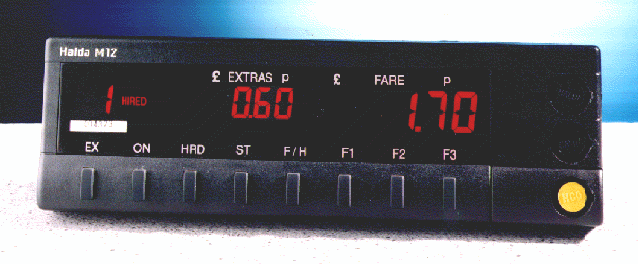

M12 TAXIMETER

To contact us:

Phone:   01928 572 472

Fax:       01928 572 872

E-Mail :   info@halda.co.uk

Unit 4,

The Cormorant Centre

Picow Farm Industrial Estate

Runcorn

Cheshire

WA7 4NQ

Back

Technical Specifications.

Supply voltage := 6.0 to 18.0 volts D.C.

Current := 0.3 A (when active, excluding "For Hire" lamp)

                   00.5 A ( when Idle)

Relay Outputs.

Maximum current on the relay used to power the "For Hire" lamp := 7.5 A   D.C

4 x MOSFET Relays (fully programmable) 12v 1A  D.C on each output or a total of 2 A  D.C all together.

Inputs.

4 x fully programmable inputs for connecting peripheral devices (e.g. mobile Phones, pressure switches, etc)

Pulse inputs are Open collector, Sine or Active, Given this the M12 is an extremely versatile piece of

equipment in that it can successfully adapt to the wide range of vehicles used on the market today without

the need for 'Signal conditioners'.

Communications.

RS 485.

Protection Functions.

The Taximeter is reverse polarity protected as well as overcurrent and overvoltage.

Sealing.

The M12 can be sealed in compliance with P.C.O / B.S.I and International standards using either lead crimp seals or Push-in Plastic seals.
